Steel CNC Metal Plasma Cutting Machine

  • Steel CNC Metal Plasma Cutting Machine
  • Steel CNC Metal Plasma Cutting Machine
  • Steel CNC Metal Plasma Cutting Machine
  • Steel CNC Metal Plasma Cutting Machine

Steel CNC Metal Plasma Cutting Machine

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 20 Days
    Packaging: Wooden case packing All Cnc Router are packed with standard inner plastic wrap and export wooden case.
    Productivity: 200
    Brand: UTECH
    Transportation: Ocean,Land
    Place of Origin: China
    Supply Ability: 200 Sets per month
    Certificate: ISO 9001 CE
    HS Code: 8465990000
    Port: Qingdao Port,Guangzhou Port,Shanghai Port

Basic Info

Model No.: UT-1325

Product Description

Steel CNC Metal Plasma Cutting Machine


Machine Feature

1. The machine adopts the moving gantry structure, imports high precision screw and linear guide, smooth transmission, high precision.

2. Bed and beam, the table are using the overall welding structure, according to large manufacture standard , first stress annealing and second rough processing , finally vibration aging treatment, can completely eliminate the welding and processing stress, to maintain high strength, high precision, can be maintained for more than 20 years without deformation.

3. X, Y axis are imported from Japan servo motor, high precision, high speed, high torque, high inertia, stable and durable performance. To ensure that the machine's high speed and acceleration.

Steel CNC Metal Plasma Cutting Machine

Processing Area

1300*2500mm

Working Thickness

30mm

Z Axis Feeding Height

180mm

Working Material

Iron, aluminum, titanium, stainless steel and others

Running Speed

0-15000mm/min

Cutting Speed

0-10000mm/min

Power

10.5KW

Input Voltage

380V/220V/110V

Power Supply Frequency

50HZ/60HZ

Plasma Power Supply

63A

File Transfer Mode

USB Interface

Working Method

Non contact arc

Driving Mode

Gear Driving

Mode of Motion

Gantry Driving

X Axis Motor and Driver

JMC Stepper and Driver

Overall Dimension

2200*3300mm

Ventilation System Install Mouth

Double Ventilation Mouth

Weight

1000KG

Control System

DSP A12S

Guide Rail

Taiwan HIWIN Linear Square Rail

Plasma Generator(Power)

Huayuan or Hypertherm Plasma(USA)

Plasma Cutting Gun

Huayuan or Hypertherm Plasma Cutting Gun

Floating Cutting Gun Mode of Motion

Automatic and Pneumatic Test

System

Beijing Start Controlling System

Floating Adjustable Block

Beijing Start Floating Adjustable Block

Body Configuration

Steel

Table Configuration

Steel Table Frame Iron Lattice

Material Fixed Mode

Electrode Plate

Processing Cuttng Instruction

EMG, G-code, U00, MMG, NC

Machine Positioning

±0.15/300mm

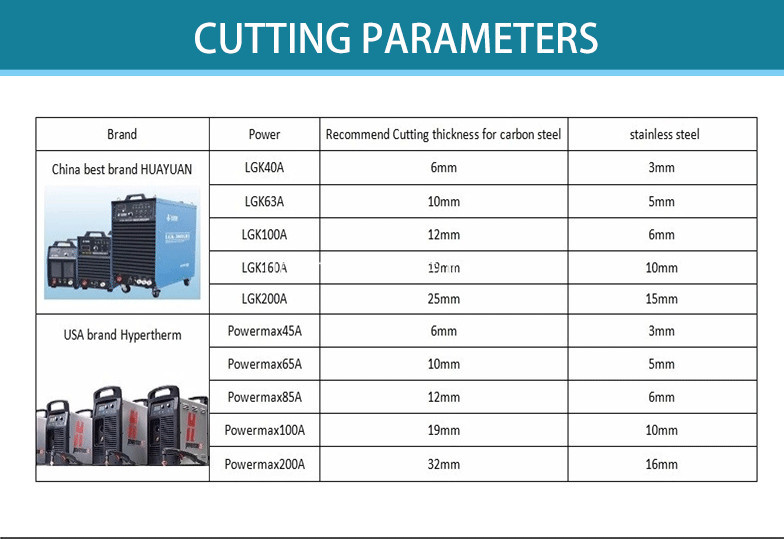

Cutting thickness:
Please Kindly tell us the Cutting Materials, the maximum working area and the cutting depth.
According to this,we suggest most suitable machine for you.
Beijing Starfire Cnc Plasma Controller

Detailed Images

Cutting head

High precision cutting performance and cutting speed

Utech Plasma Metal Cutting Machine


Control system

STARFIRE/START/FLMC-2300A/NC-Studio control system all is ok , Chinese /English /RUSSIAN/Spainsh/French/Czech/Janpanese/Slovakian etc.

Version for your choose ,so you don't need worry about operate problem regardng language.

Portable Plasma Pipe Cutting Machine


Automatic torch height controller


With this function , the torch can up and down with automatic regarding the sheet radian , so through your sheet is not flat , you also don't need worry the torch will collide the sheet , then to protect the cutting torch and ensure the cutting performance.

Portable Plasma Pipe Cutting Machine


Portable Plasma Pipe Cutting Machine

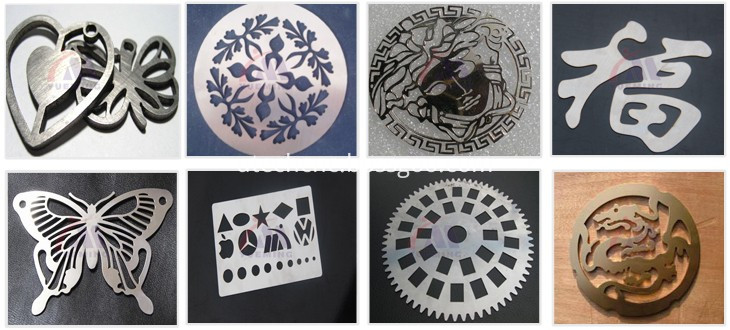

Application Industry


Applicable Materials

Aluminum,Copper,Titanium,Nickel,Iron,Galvanized Sheet,White Steel,Titanium Plate,Carbon Steel, Stainless Steel,Alloy Steel, Composite Metal,Ect.

Applicable Industries

Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,Military Industrial,Wind Power, Structural Steel,Boiler Containers,Agriculture Machinery,Chassis Electrical Cabinets,Elevator Manufacturers,Textile Machinery, Environmental ProtectionEquipment,Ect.
Portable Plasma Pipe Cutting Machine
